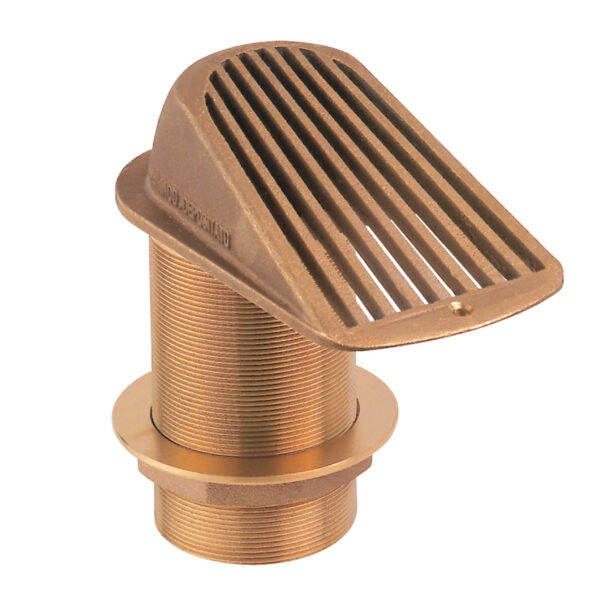

Guidi Grated Water Intake Bronze Pipe Fitting 1112B (BSPP)

$67.45 – $510.51

Guidi grated bronze water intake (thru-hull) 2000 series – 1112B-01. Available in various sizes as per the size chart. Diameter sizes start at 1/2″ and go all the way up to 2-1/2″. Some pipe diameter sizes are only available via special order. Additionally, not all sizes shown in the sizing chart are carried. This directionally scooped and grated water features a tight array grate to provide the most initial filtration of larger particles from entering your sanitary system helping maintain strainers cleaner for longer periods of time.

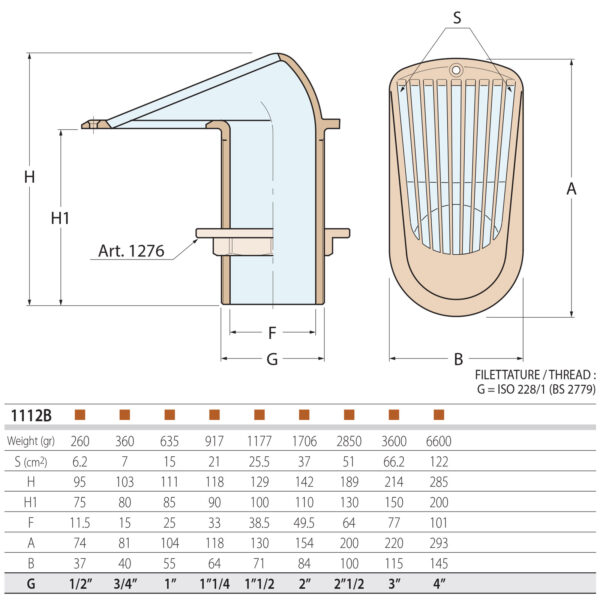

Download Size Chart 1112B-01

SKU: N/A Category:

Need it urgently?

  • Free ground shipping on orders over $100. Restrictions apply
  •  UPS Next Day Air is available
  • In stock orders placed by 2PM EST ship the same day

Guidi represents the pinnacle of bronze pipe fittings, strainers, intakes and more. These are Italian made products that offer zero-compromise solutions for your vessel. BSPP (British Standard Pipe). The Guidi 1112B-01 Scoop Grated Water Intake represents the traditional and most common type of grated scoop intake. The spacing if the grate openings is small in order to provide the most initial water filtration. Ideal for applications where the concerns of debris entering the sanitary system are high. For a grated scoop intake with higher grated spacing and more flow, look at the Guidi 1113B-01 Grated Scoop Water Intake.

Weight N/A
Dimensions N/A
Diameter

1/2”, 3/4”, 1”, 1-1/4", 1-1/2", 2”, 2-1/2"
