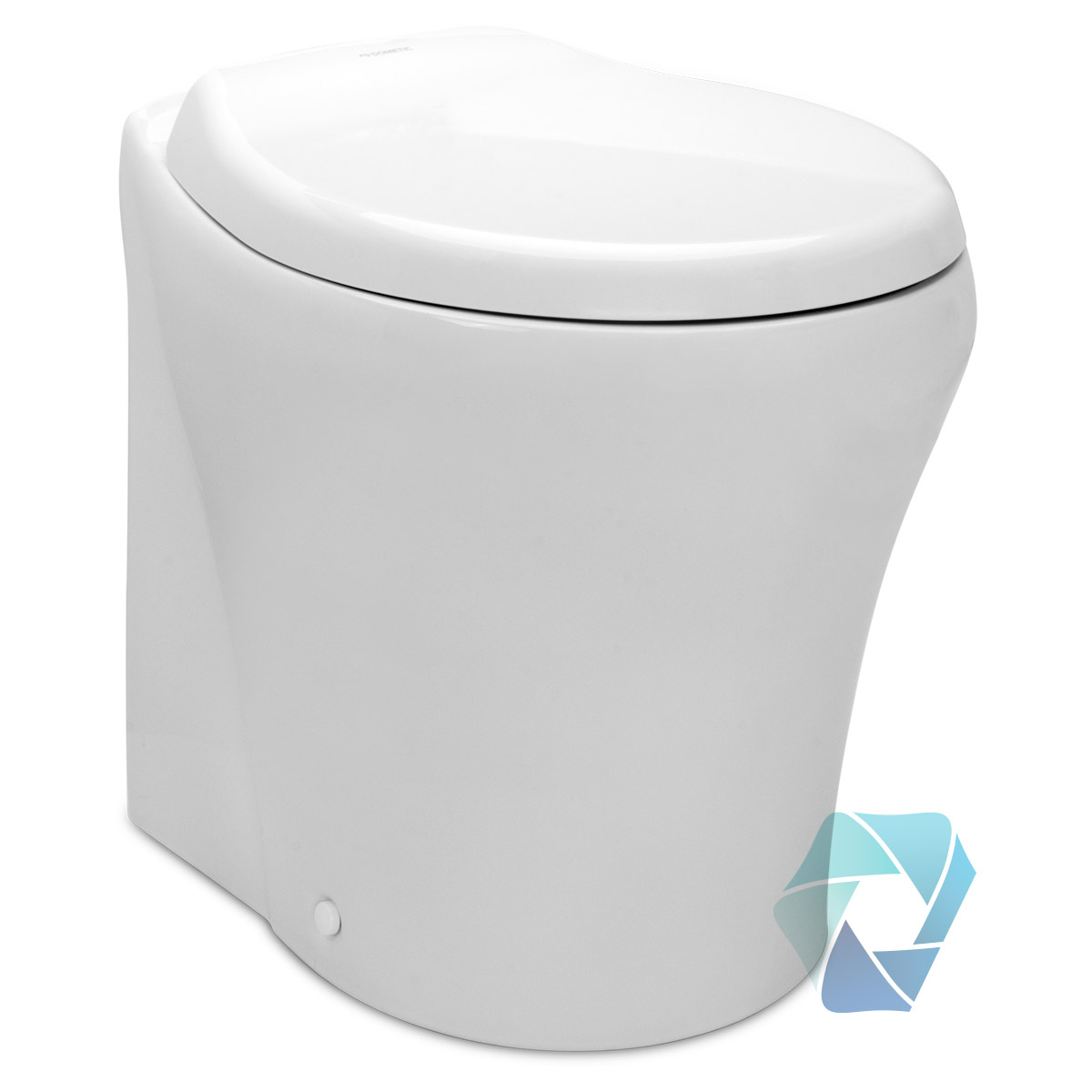

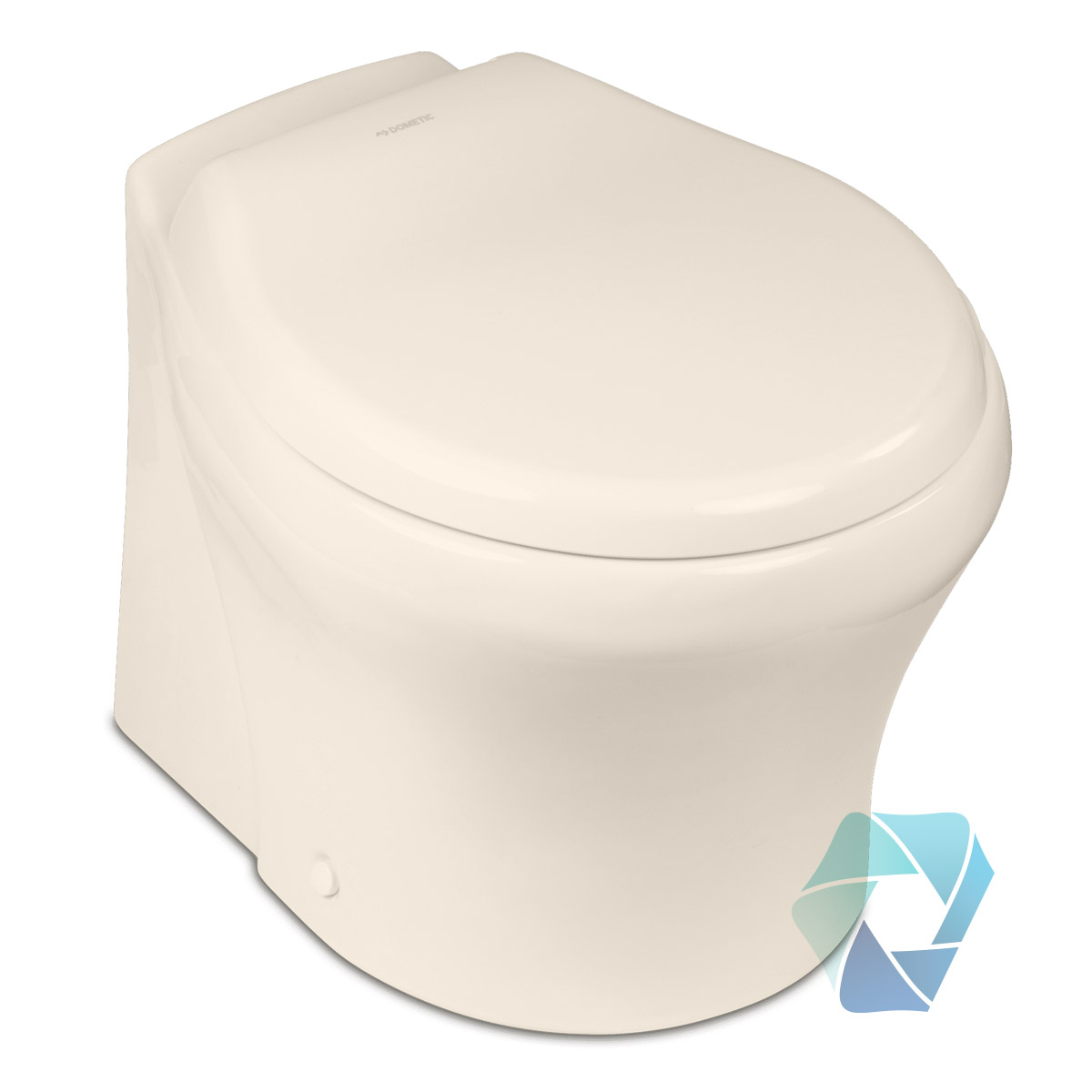

8600 Series MasterFlush (Straight Back)

The 8600 Series MasterFlush toilets from Dometic provides the perfect solution for any boat head. The contemporary look is designed with a flat back to fit against walls, plus two height options: standard and low-profile. With white and bone colors to choose from, you can customize your design for superior style. An integral water trap reduces macerator sound on all models, while its powerful macerator and “soft close” seat action provide comfortable and dependable use. The 8600 Series MasterFlush macerator toilet has two settings – “Normal” or “Dry Bowl” – plus 12 V DC or 24 V DC operation, making it ideal for marine and RV toilet needs. Plus, through-the-floor and through-the-wall discharge fittings provide convenience in installation. Requires 20 amps/12 V DC; 15 amps/24 V DC. The 8600 series from Dometic offers unparalleled performance for your boat or RV.

Features:

• Powerful macerator flushing system.
• Flat back design to fit against walls.
• Available in low profile or standard heights.
• Ultra quiet with an integrated water trap (tall models only).
• Through the floor or through the wall discharge fittings.
• Bone or White
• 20 amps/12 V DC; 15 amps/24 V DC
• Normal (0.85 gal) and Drybowl (0.45 gal) flushing modes
